Installing the Nexkey Core - RIM

IMPORTANT NOTE

To prevent post-installation delays, the Nexkey system must be fully commissioned before installing the hardware.  Please refer to this walkthrough demonstrating how to commission a new system via Nexkey’s Reseller Portal.

smart lock with metal components and integrated bolts

Kit includes:

  • Nexkey Core RIM

  • T6 Screwdriver

  • Battery

  • O-ring for handle(for waterproofiing)

  • Installation Instructions Manual


What to bring to installation (not included):

Hand tools for disassembly of lock

Any additional tools for shortening tailpieces

Smartphone (Android or iPhone)

Assorted Craftsman screwdrivers with clear and red handles, including Phillips and flathead types, arranged in a row on a white background.
Dremel 8220 cordless rotary tool with cutting disc attachment
Smartphone screen displaying a smart lock app interface with a "Main Entrance" option that shows the status as "Online" and "Unlocked" with a green checkmark.

RIM Installation Instructions


Prepare Nexkey Core - If you are replacing a cylinder, be sure to note the length of the old tailpiece. When installing outdoors, be sure to install provided O-rings to prevent water incursion

Remove Mechanical Cylinder - Remove the existing RIM hardware to gain access to the two RIM cylinder retaining screws. Loosen the retaining screws and remove the RIM cylinder and RIM cylinder retaining plate from the door.

Install Nexkey Core into Lockset - Select the cylinder ring that will position the cylinder to the correct length. Make sure the tailpiece has been measured and cut to the appropriate length, then break off the screws so the clamp plate and cylinder properly tighten onto the door.

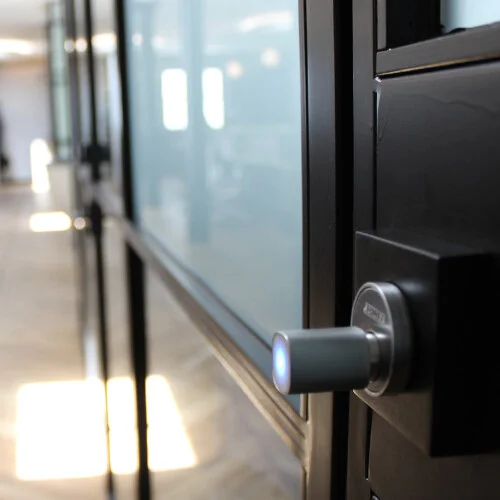

Unlocking the Nexkey Core

Step 1

Open Nexkey App, tap the front of the Core , and It will start to blink blue.

Step 2

Once the Core LED turns solid blue, then you can twist as you would a key. The resistance and turn will be the same as with the lock’s original key.

What does the LEDs mean?

Slow Blink: Device is attempting to connect to the Nexkey app

Fast Blink: Device found, Authentication in process

Solid LED: Core unlocked

Solid LED for longer than 10 seconds: Device needs to be power cycled by removing and reinserting the battery.

Testing Nexkey Core

The Core should not change the function of the lock. The lock should operate in the same manner as it did with a key.

Step 1

Keeping the door open, open the app and tap the front of the Core. The LED will start to blink, when it turns solid you should be able to rotate the Core and unlock the door.

Step 2

Once you have gained confidence in the lock operation, close and lock the door. Test the Core.

Step 3

You may be able to turn the Core but the door should not unlock when the LED is off

Update Last Battery Change Setting in the Nexkey App

By performing this step, Nexkey will send a email when it's time to replace the battery again.

Step 1. Select Keys tab

Step 2. Select the lock you just changed the battery in

Step 3. Select Settings and scroll down to the bottom

Step 4. Select Last Battery Change

Step 5. Select date you installed the new battery

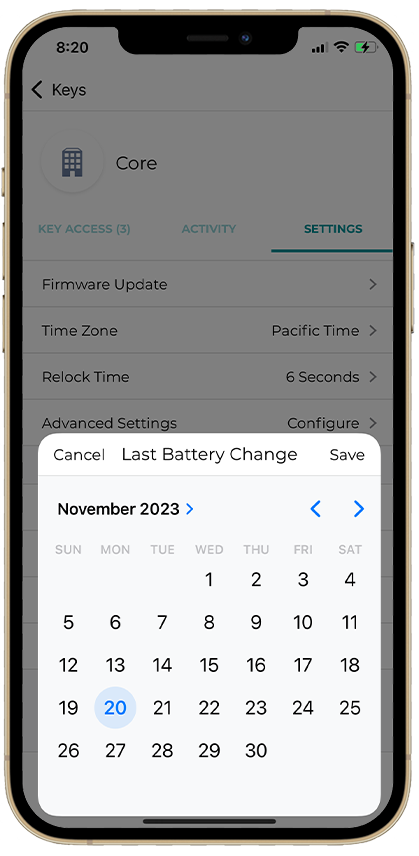

Smartphone screen displaying a digital calendar for November 2023, showing the "Last Battery Change" option in an app. The interface includes firmware update and time zone settings, with the selected date on November 20.
  • You may have turned the Core prematurely which locks the Core as a safety feature. Reboot the Nexkey app, tap the Core again, and wait for the checkmark before you turn to open the door.

  • The battery can be replaced from directly from the front side of the lock.

  • Power cycle the Core by removing the battery for 20 seconds and reinstalling.

Troubleshooting
